Bent Nail 2.0

some people asked for a video detailing the biuld after it was done. if you have any questions or comments, please do.


Minbari said:
some people asked for a video detailing the biuld after it was done. if you have any questions or comments, please do.

Click to expand...
Wow that is in-depth dude cool.
Hey what is the temp difference between your thermo probe temp in the kettle as opposed to the rims tube?
I think that's where you had the other temp probe.

I look forward to a build vid on your glycol/fermentation rig once it's untangled lol!

What do you mash into a basket or bag or do you have a perforated screen at bottom of kettle?

some people asked for a video detailing the biuld after it was done. if you have any questions or comments, please do.

Trialben said:
Wow that is in-depth dude cool.
Hey what is the temp difference between your thermo probe temp in the kettle as opposed to the rims tube?
I think that's where you had the other temp probe.

I look forward to a build vid on your glycol/fermentation rig once it's untangled lol!

What do you mash into a basket or bag or do you have a perforated screen at bottom of kettle?
Click to expand...

its after the HERMs coil. it really depends on the temp of the HLT water. if I heat the kettle to 126°F and then start recircing to heat the HLT water, it will be about 90° coming out of the HERMs coil. of course the mash kettle temp drops as the cooler water goes back in as well. once it is up and running there is not more than a couple degree difference. ussualy the HERMs temp is a little higher to maintain the mash temp.

I made a SS mesh basket that I put my BIAB bag into. its about 2 inches less diameter than the boil kettle, so it drains very nicely.

HighVoltageMan! said:
Have you tried turning the pump on? Does the table amplify the pump noise?
Click to expand...
now that I had a chance to use it. it is silent. just a slight hum that you would expect from any pump.

Minbari said:
some people asked for a video detailing the biuld after it was done. if you have any questions or comments, please do.



its after the HERMs coil. it really depends on the temp of the HLT water. if I heat the kettle to 126°F and then start recircing to heat the HLT water, it will be about 90° coming out of the HERMs coil. of course the mash kettle temp drops as the cooler water goes back in as well. once it is up and running there is not more than a couple degree difference. ussualy the HERMs temp is a little higher to maintain the mash temp.

I made a SS mesh basket that I put my BIAB bag into. its about 2 inches less diameter than the boil kettle, so it drains very nicely.
Click to expand...
Cool I've been thinking of the same thing with my all in one keg kettle.

But I'm thinking there has gotta be someone online building them to specific kettle dimensions...

Your an inspiration Minibari thanks again for inviting us into your homebrewery sooo cool!

Adding to the new system already. :p

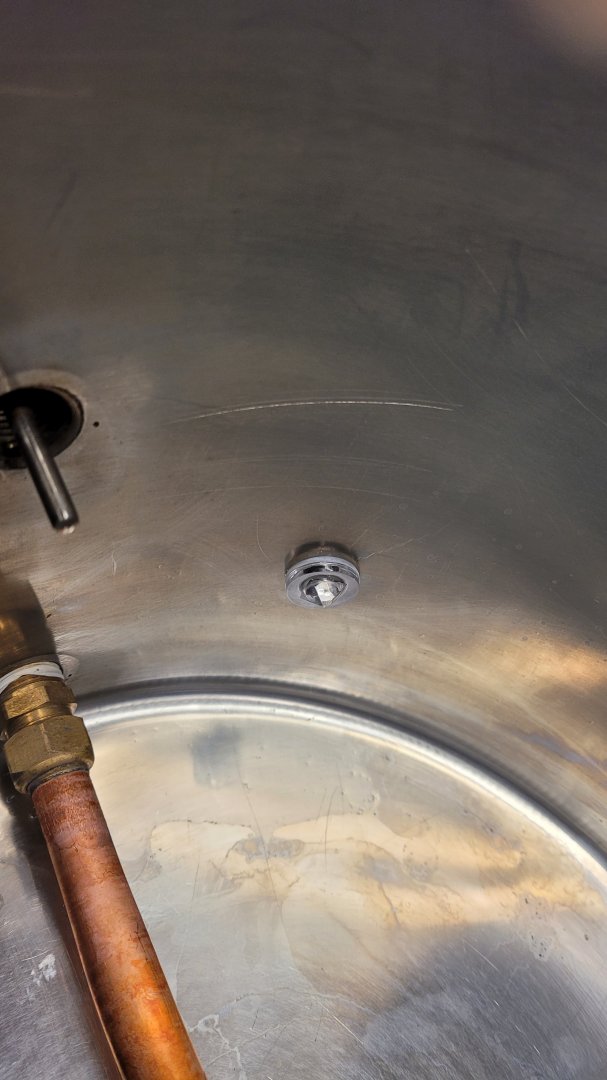

Sensor will detect presence of water. Will stop the pump before it runs dry when doing the herms recirc during mash. (Due to stuck sparge)

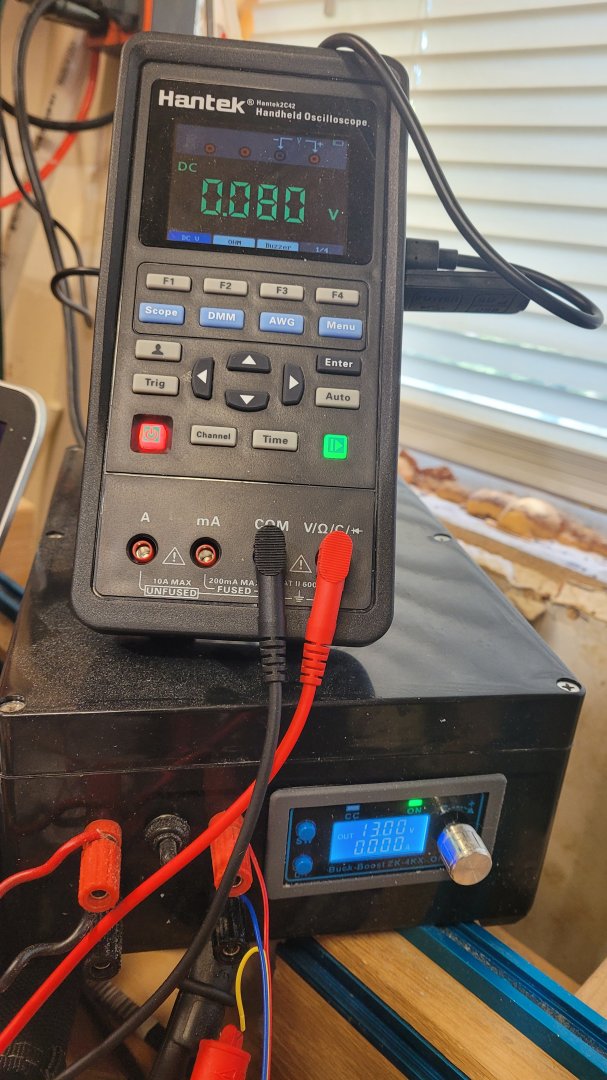

Output from sensor with no water

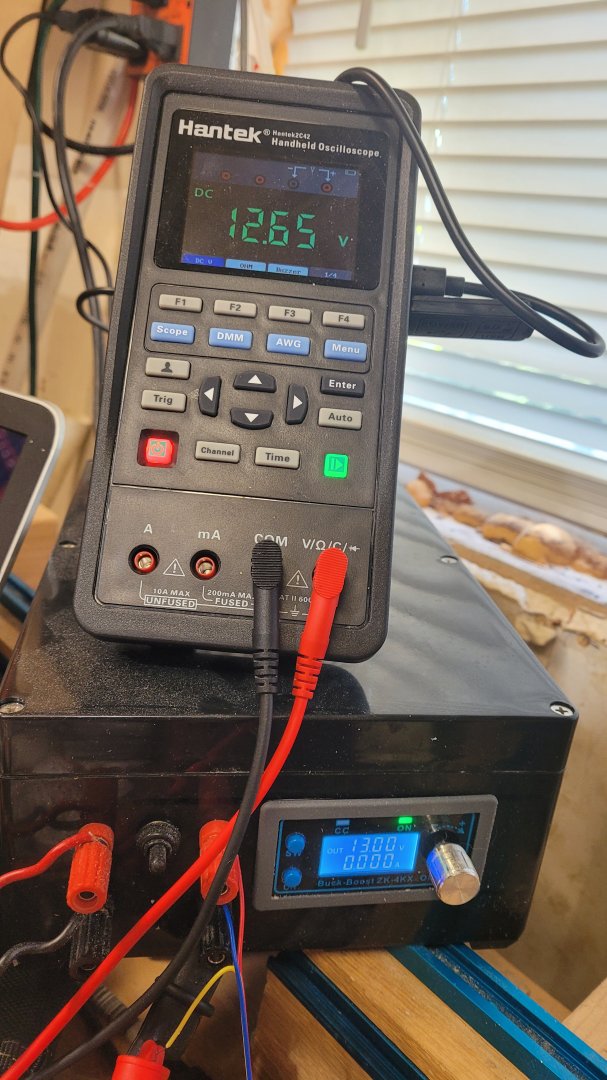

Output in water



Last edited:
Trialben said:
That beats the mechanical ones I've seen Less intrusive in the kettle too.
Love that braided electrical cord too you sure get the goods man!
Click to expand...
I know! It took me a while to find that. $12 for 3 of em too. I tested it next to metal, mesh, etc. it only triggers if there is liquid. the prism refracts light from the IR LED inside the sensor

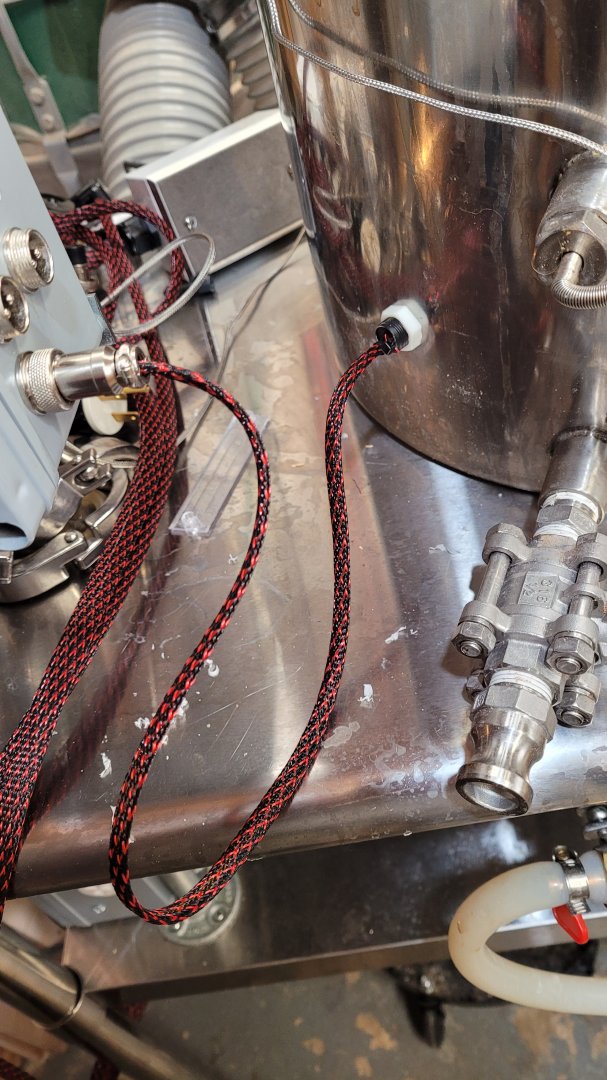

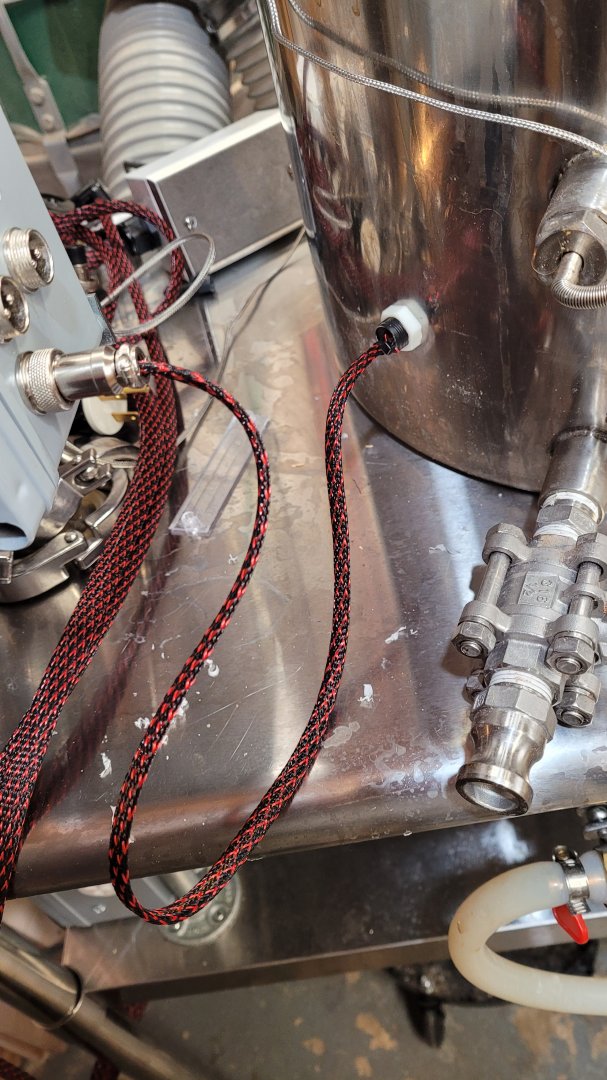

Its actually a sleeve. :p I got three different sizes so all the wires would look the same.

Minbari said:
I know! It took me a while to find that. $12 for 3 of em too. I tested it next to metal, mesh, etc. it only triggers if there is liquid. the prism refracts light from the IR LED inside the sensor

Its actually a sleeve. :p I got three different sizes so all the wires would look the same.
Click to expand...
Cool hey so your wire that in on 12v side or 240v side?

Any chance you could link me the product might install one on my kettle then if their that cheap.

What do they say cheap insurance against a burnt out element.

Most time cleaning the kettle is when I near burn out the element I'd I've not filled it up above element...

Trialben said:
Cool hey so your wire that in on 12v side or 240v side?

Any chance you could link me the product might install one on my kettle then if their that cheap.

What do they say cheap insurance against a burnt out element.

Most time cleaning the kettle is when I near burn out the element I'd I've not filled it up above element...
Click to expand...

its technically a 5VDC device, but it uses so little current, you can make a simple voltage divider to power it from 12VDC.

https://www.amazon.com/gp/product/B075R6SSHJ/ref=ppx_yo_dt_b_asin_title_o09_s00?ie=UTF8&psc=1

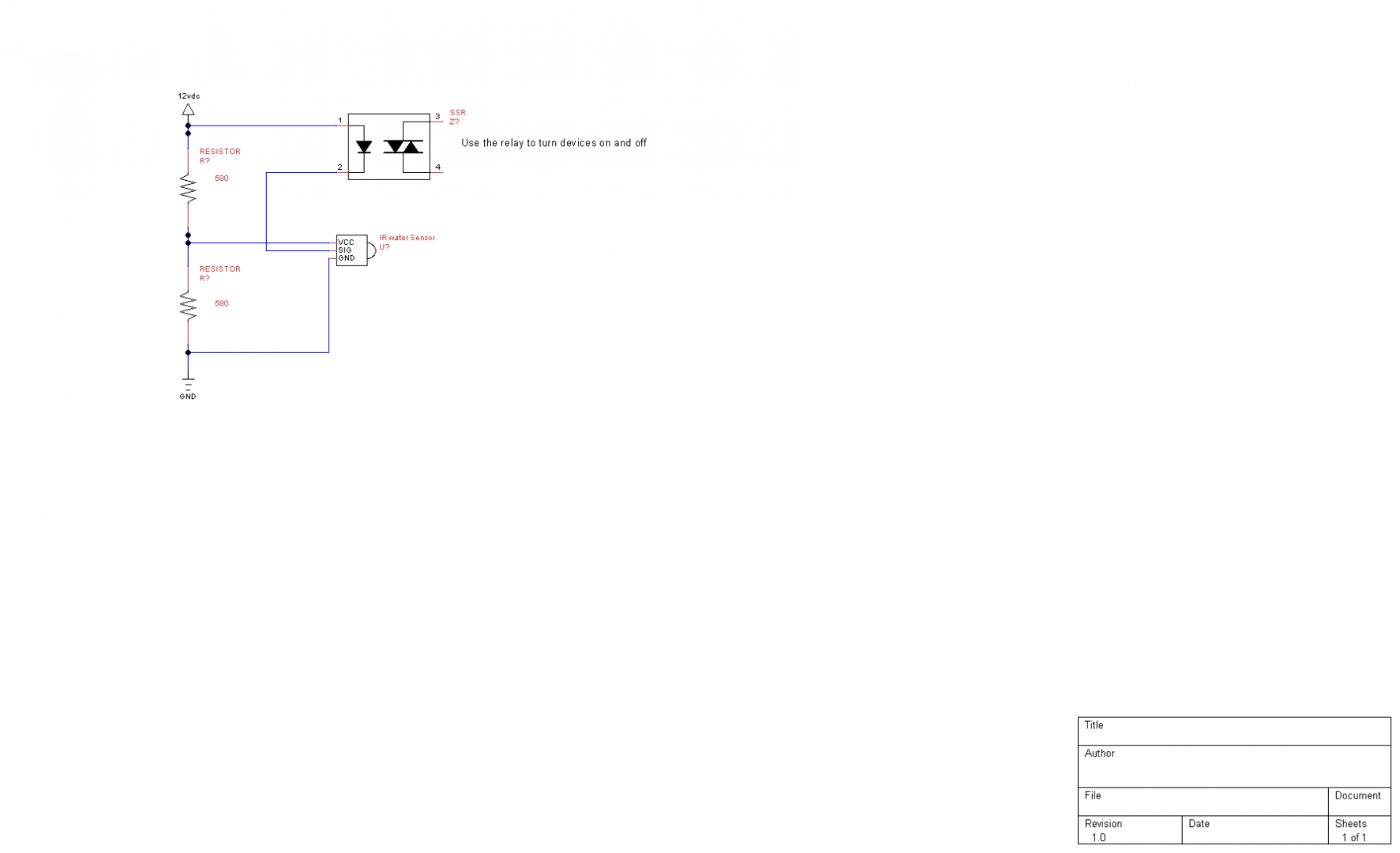

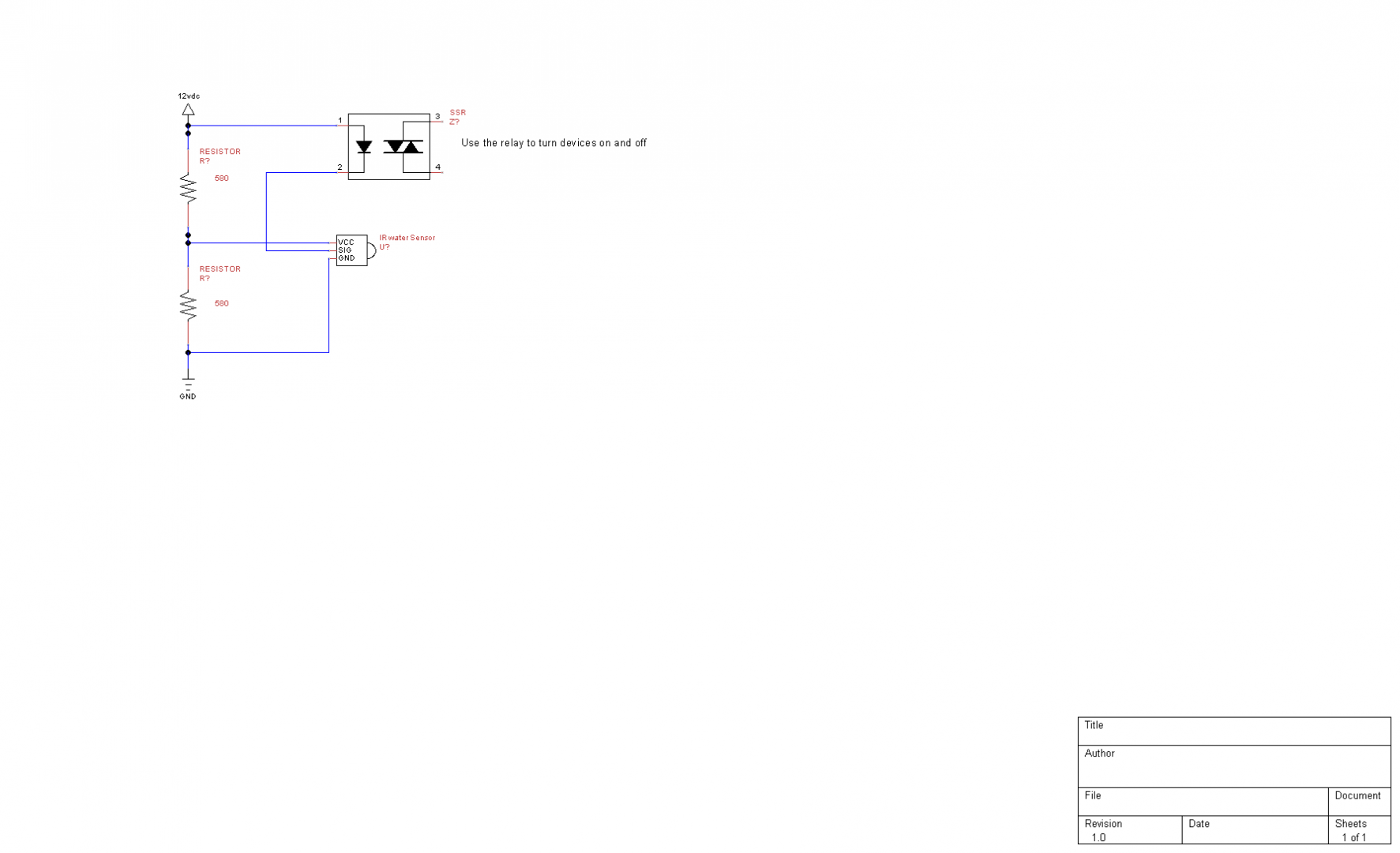

This is how to wire it up:


Minbari said:
It's where I got the idea. :p
Click to expand...
Haha yea that makes sense :) let me know if you have any questions about it. I stream on Twitch using OBS, but I know other streamers have had success on YouTube live and reddit

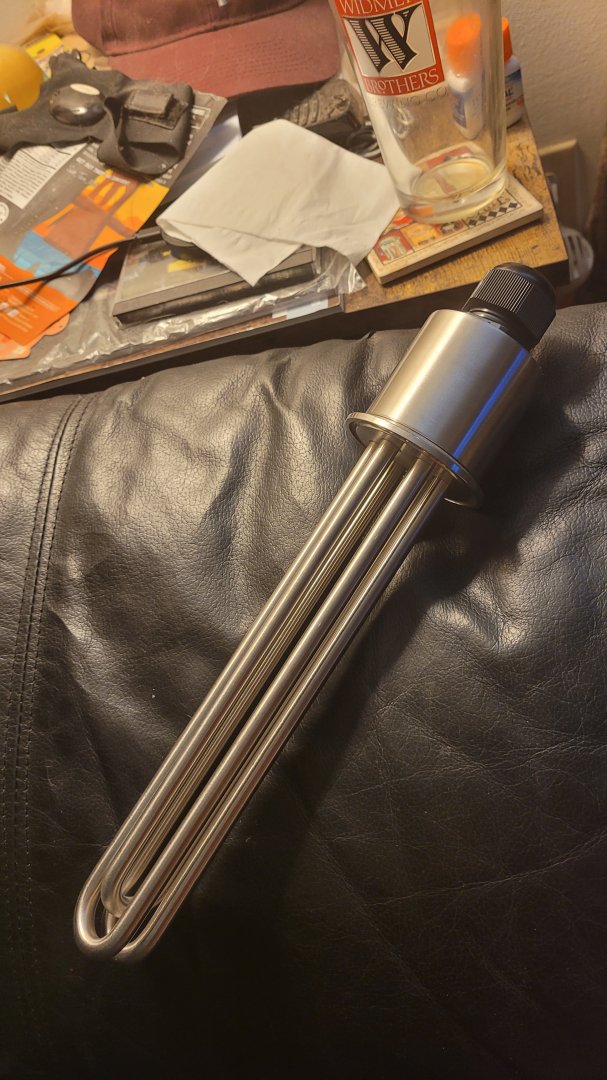

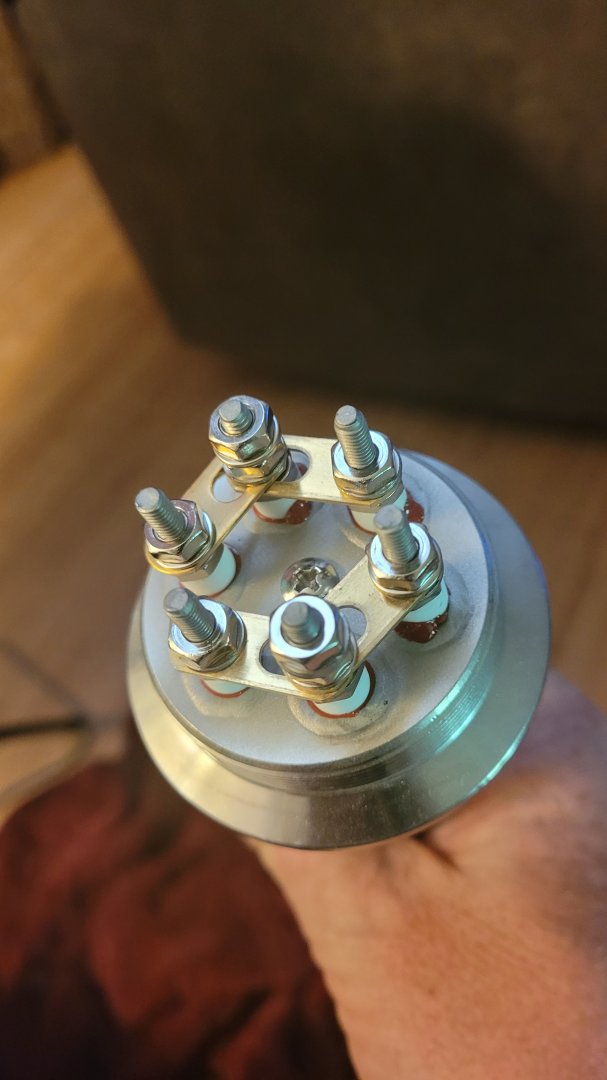

Got this to try out. It has (3) 1500 watt 240vac elements. Once you remove all those jumpers they can be controlled independently.

They are 316 stainless, so should be easier to clean than the current ones (just plain water heater elements)
