Bent nail 2.0 - Fermentation edition

Seems to be working.

Room temp : 67F
Chamber temp: 51F

This is while the fermenter is at 38F. Lowest i have ever gotten it. Previously about 44-45 F was it

Phase 2

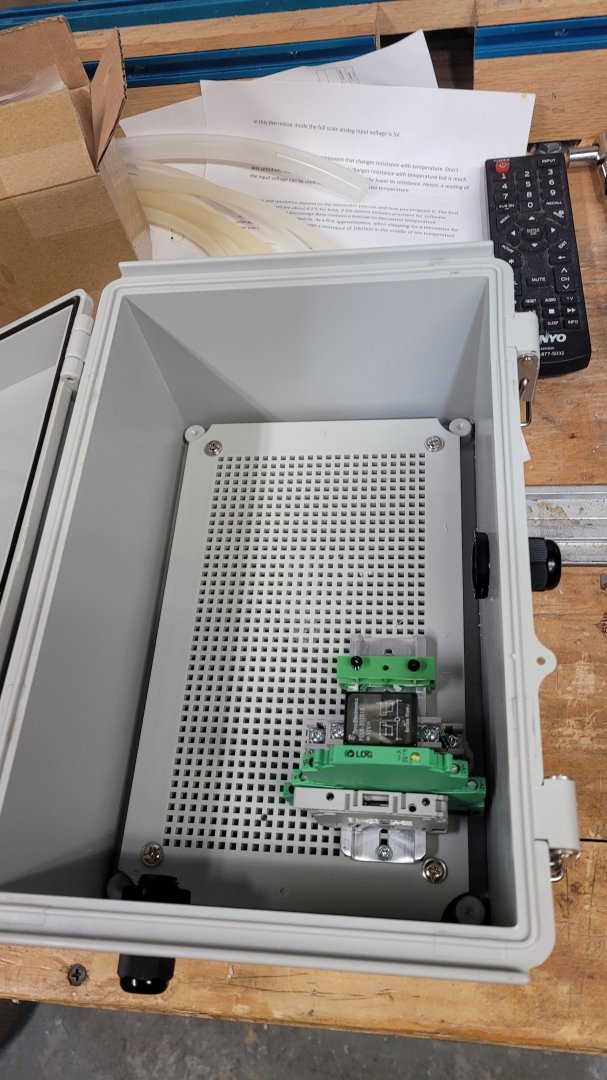

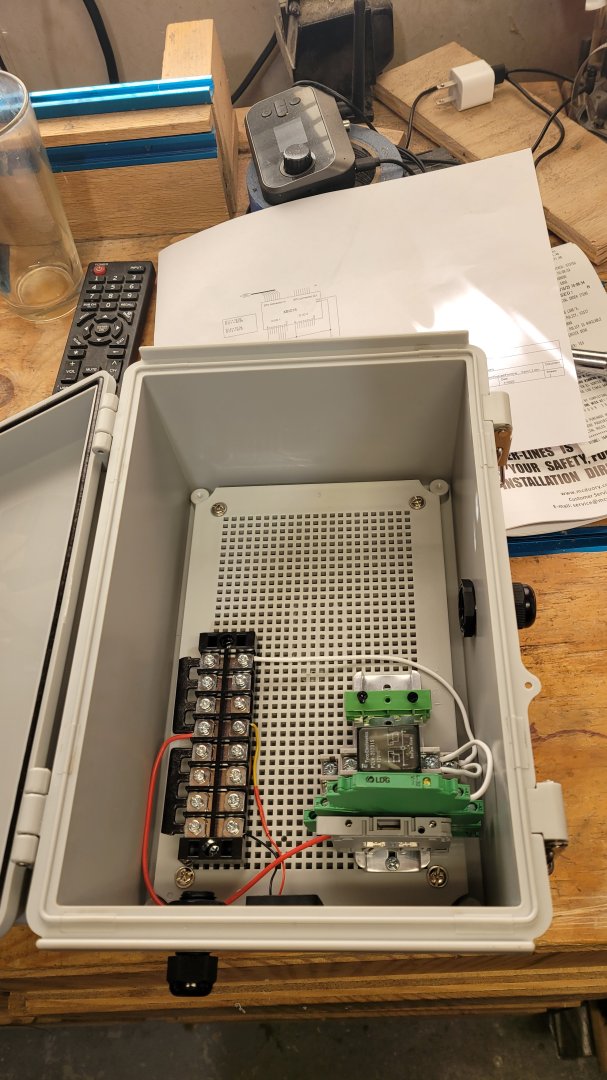

Beginning to build the box for fermenter #2. It's a sub-box for the main box. It's will just have power distribution for the second fermenter and a 16 channel DIO module.


Last edited:
Minbari said:
Little more progress. Still waiting for the 16 ch DIO module. Getting stuff from AUS is a pain sometimes.
Maybe i should get @Trialben to be my broker lol

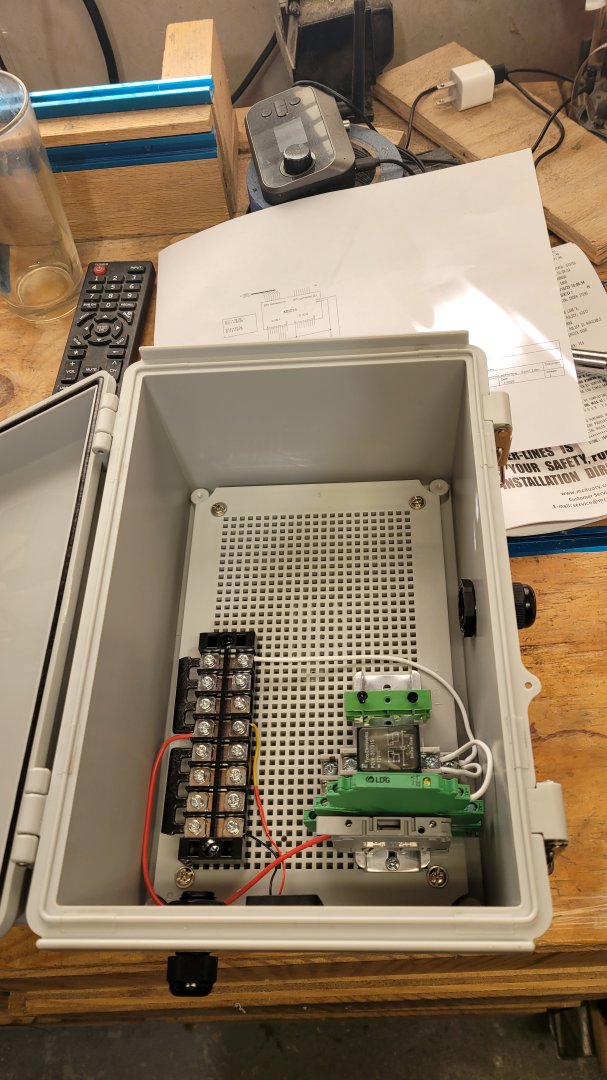

View attachment 24170
Click to expand...
Uh uh sorry dude your way outta my depth there with all that fancy gizmo's.

I'm pretty basic with what I know electronically but after all these years my dad still isn't right about it that I'd get killed mucking around with it:D.

I'm gonna go touch some wood :rolleyes:.

Who you buying through in Aus man shippings gunna kill you.
Anytime I've gone US products it's not the price that drove me away it was a crazy shipping costs.

That's why China's doing a roaring trade they'll ship it for free if your willing to wait a couple of months and forget you even ordered something:p!

Trialben said:
Uh uh sorry dude your way outta my depth there with all that fancy gizmo's.

I'm pretty basic with what I know electronically but after all these years my dad still isn't right about it that I'd get killed mucking around with it:D.

I'm gonna go touch some wood :rolleyes:.

Who you buying through in Aus man shippings gunna kill you.
Anytime I've gone US products it's not the price that drove me away it was a crazy shipping costs.

That's why China's doing a roaring trade they'll ship it for free if your willing to wait a couple of months and forget you even ordered something:p!
Click to expand...

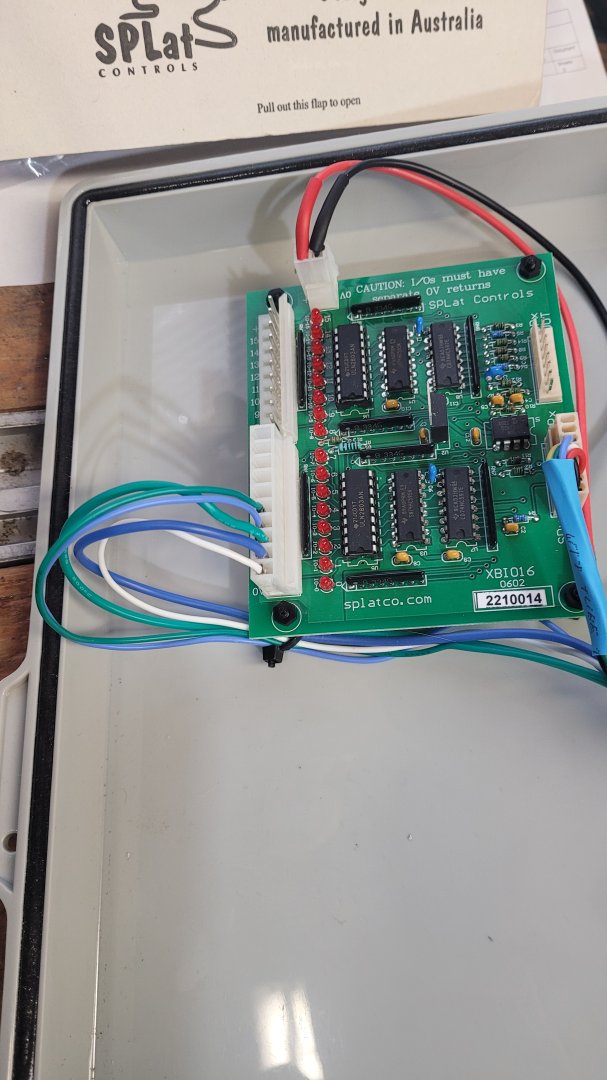

It's s company called "splatt controls". They make the controller i am using, are located in AUS, Victoria. They have good support and programming language is easy to learn. The basic full function controller is only like $300. But shipping is a pain, lol

Ya, it about $30 for basic shipping, lol. 5 day is about $80. But i am in for penny as they say, lol

Minbari said:
It's s company called "splatt controls". They make the controller i am using, are located in AUS, Victoria. They have good support and programming language is easy to learn. The basic full function controller is only like $300. But shipping is a pain, lol

Ya, it about $30 for basic shipping, lol. 5 day is about $80. But i am in for penny as they say, lol
Click to expand...
That's more like @Mark Farrall neck of the woods.
He's a Victorian I believe.

Yep, a Victorian. About 45 minutes away from them according to the Googles. They're not far from one of the trendier breweries in Aus, Mr Banks.

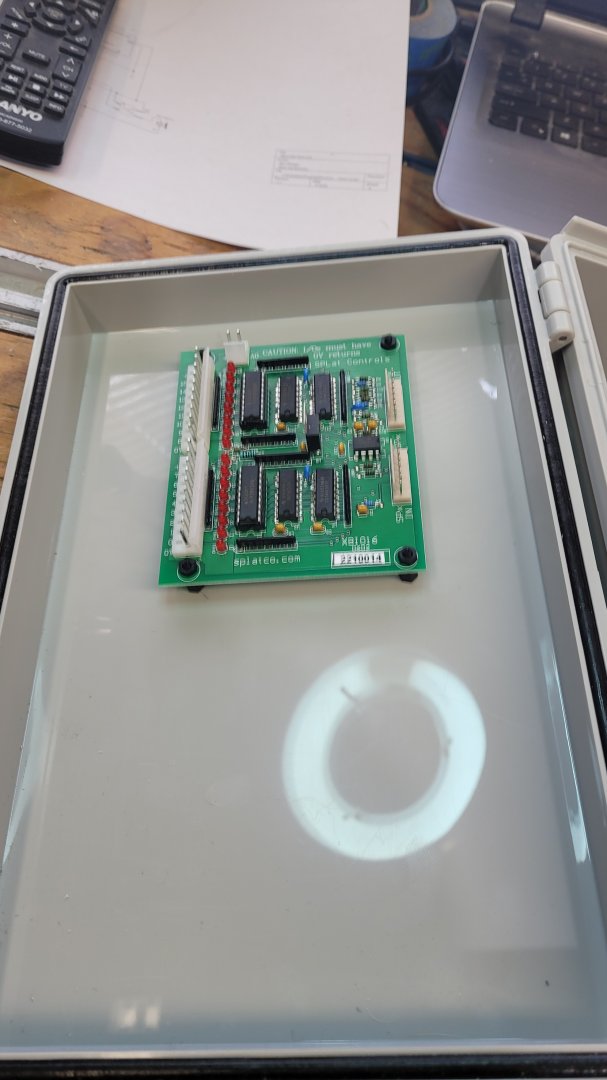

A little more progress on phase 2. Took longer than i hoped, but my device did come from AUS.

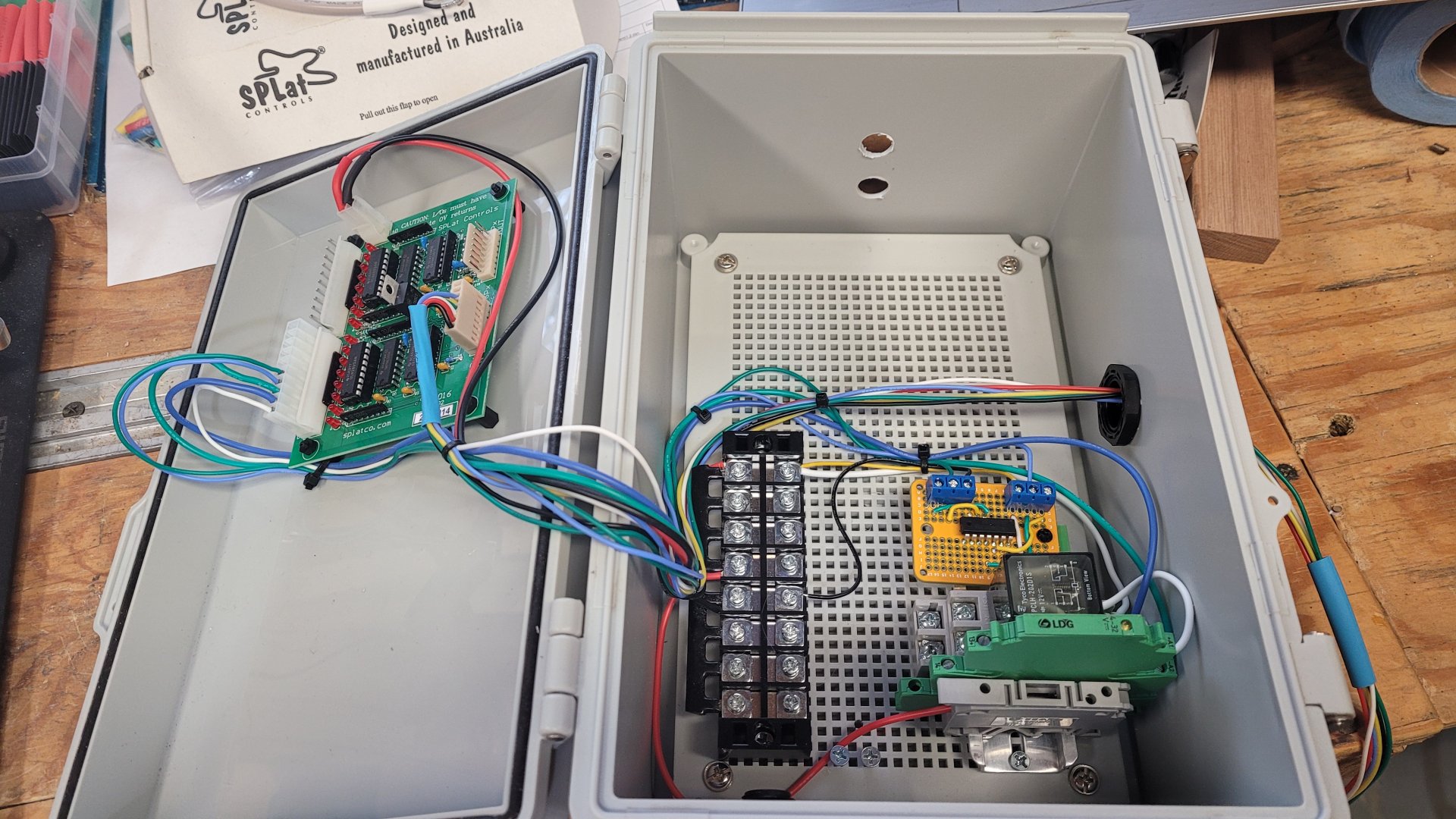

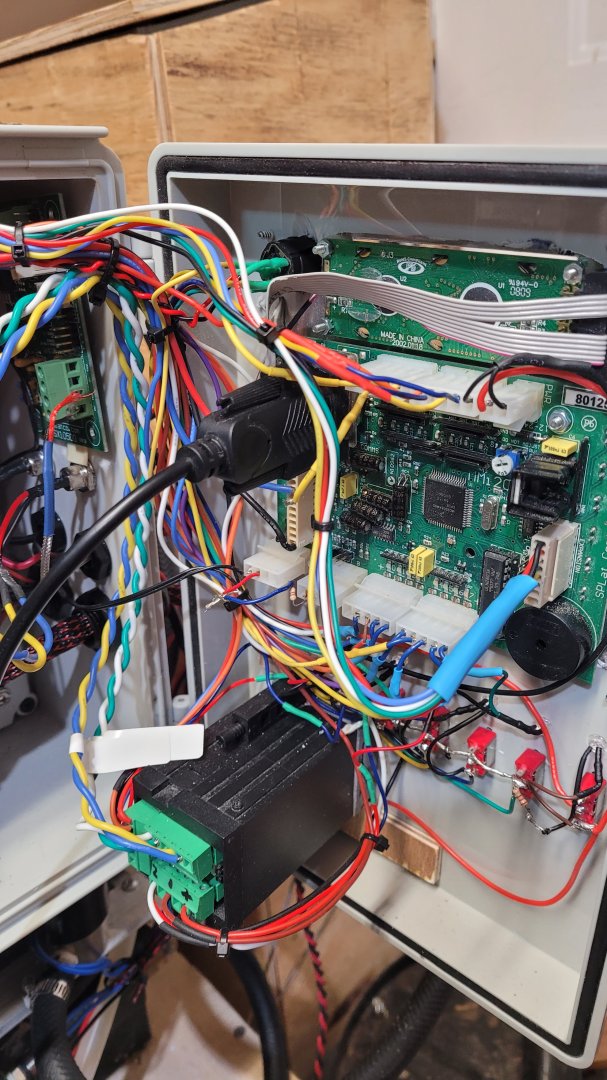

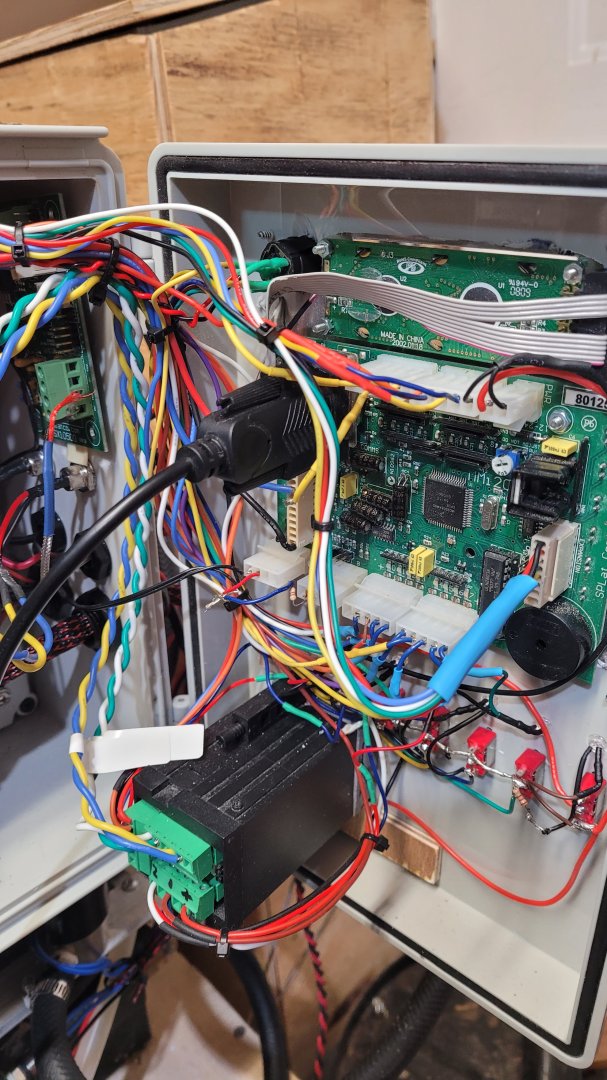

Got the wiring mostly done, just have to install it into the existing hardware.

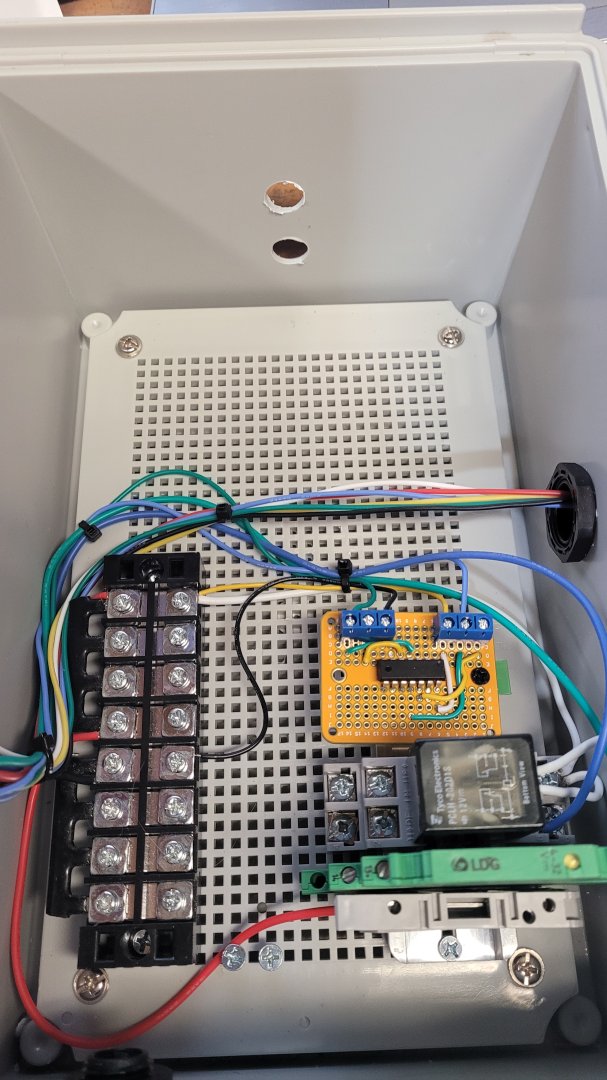

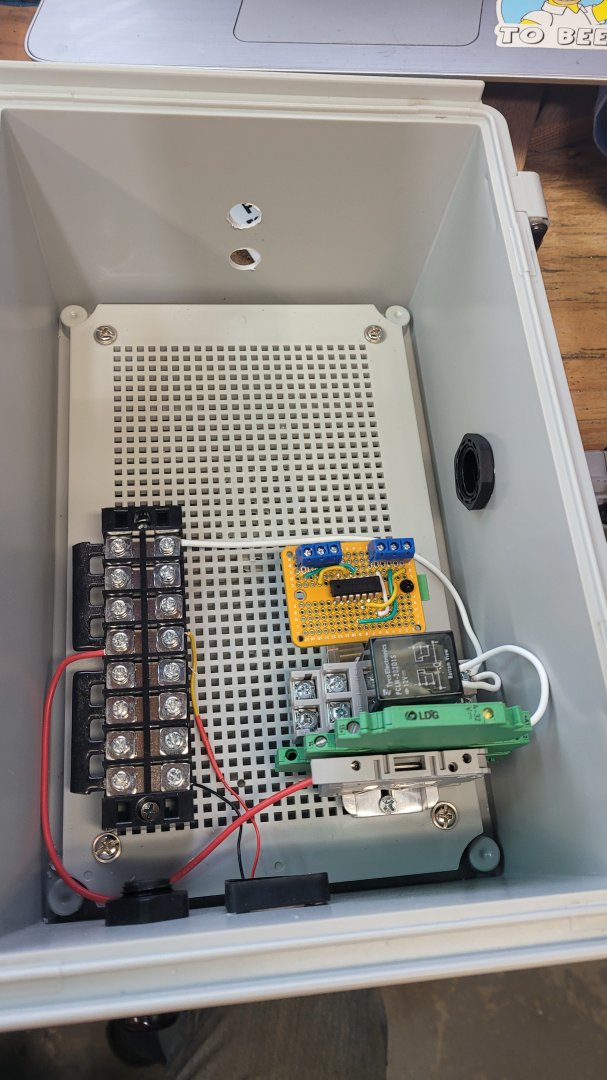

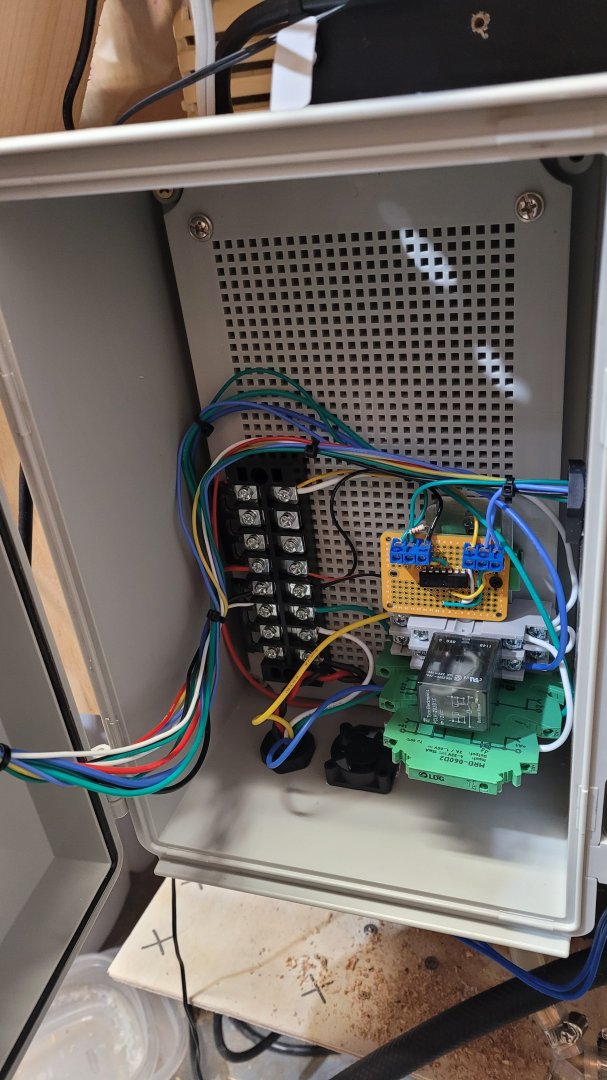

Replaced the inverter circuit with some old school cmos chips

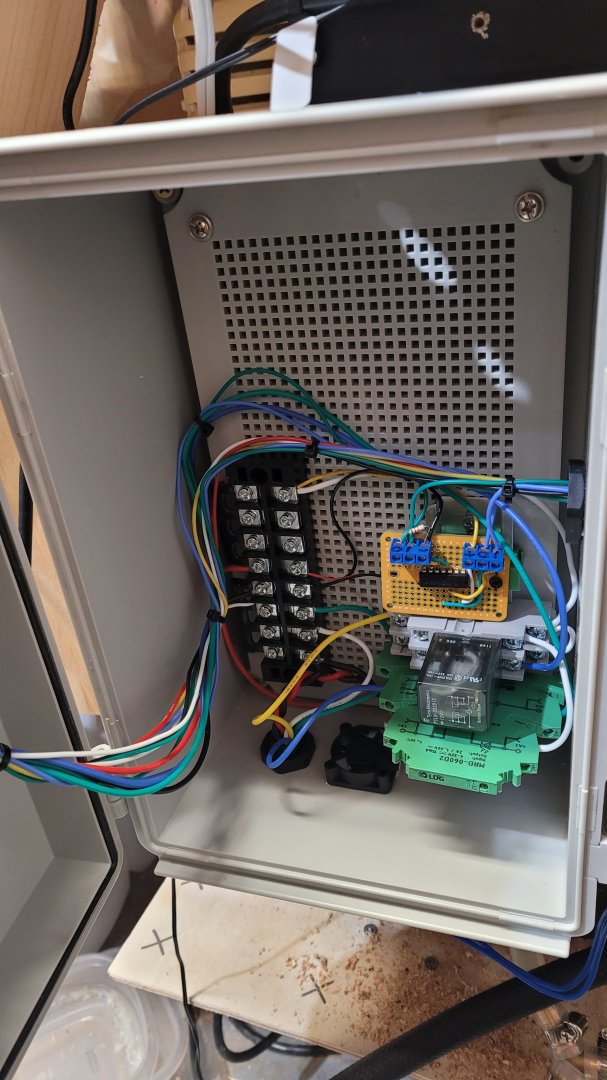

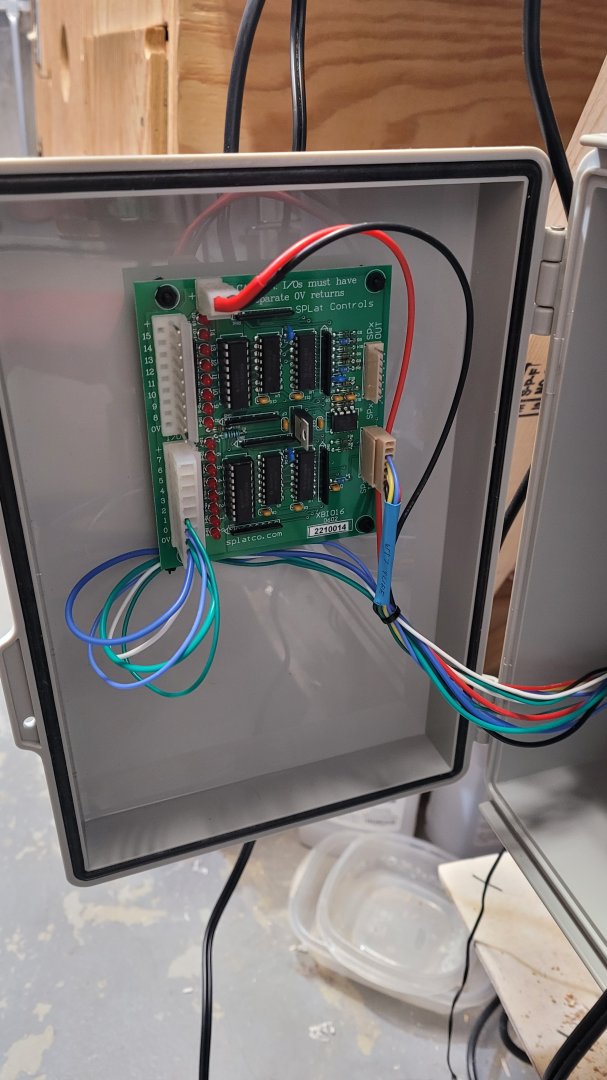

Finished this up, finally. Got the new SW finished to operate the new board.

Also added a subroutine that takes Room temp and automatically helps the PID by disabling heat or cool.


And this makes beer? Haha!
Way too complicated for me.

Trialben said:
Wowie!
Holly crap there is a lot of time spent there on that thing.

You sure your not building a spaceship :p!
Click to expand...
USS Bent nail, has a nice ring to it, lol

The Brew Mentor said:
And this makes beer? Haha!
Way too complicated for me.
Click to expand...

Well, it ferments it. :p

Ya it's totally unnecessary, but it's fun to build, at least to me it is:D
