SS Brewtech Valve Tree Setup

[Terminus]

Hi,

Does someone have a diagram or picture of how to setup an SS Brewtech Valve Tree? Or perhaps just give me a hand? I have a three vessel system with RIMS, two Riptide pumps. I bought the tree to try and organize better, but it comes with no instructions, and no diagrams. I cant seem to help much information online either. Help appreciated. Thanks!



[Ozarks Mountain Brewery]

I would contact the company, or look at the pictures, I'm not sure either



[Donoroto]

SS Brewtech Valve Tree

This web page at ss brewtech shows 2 photos of such a tree, connected. Maybe that'll help.



[Dornbox]

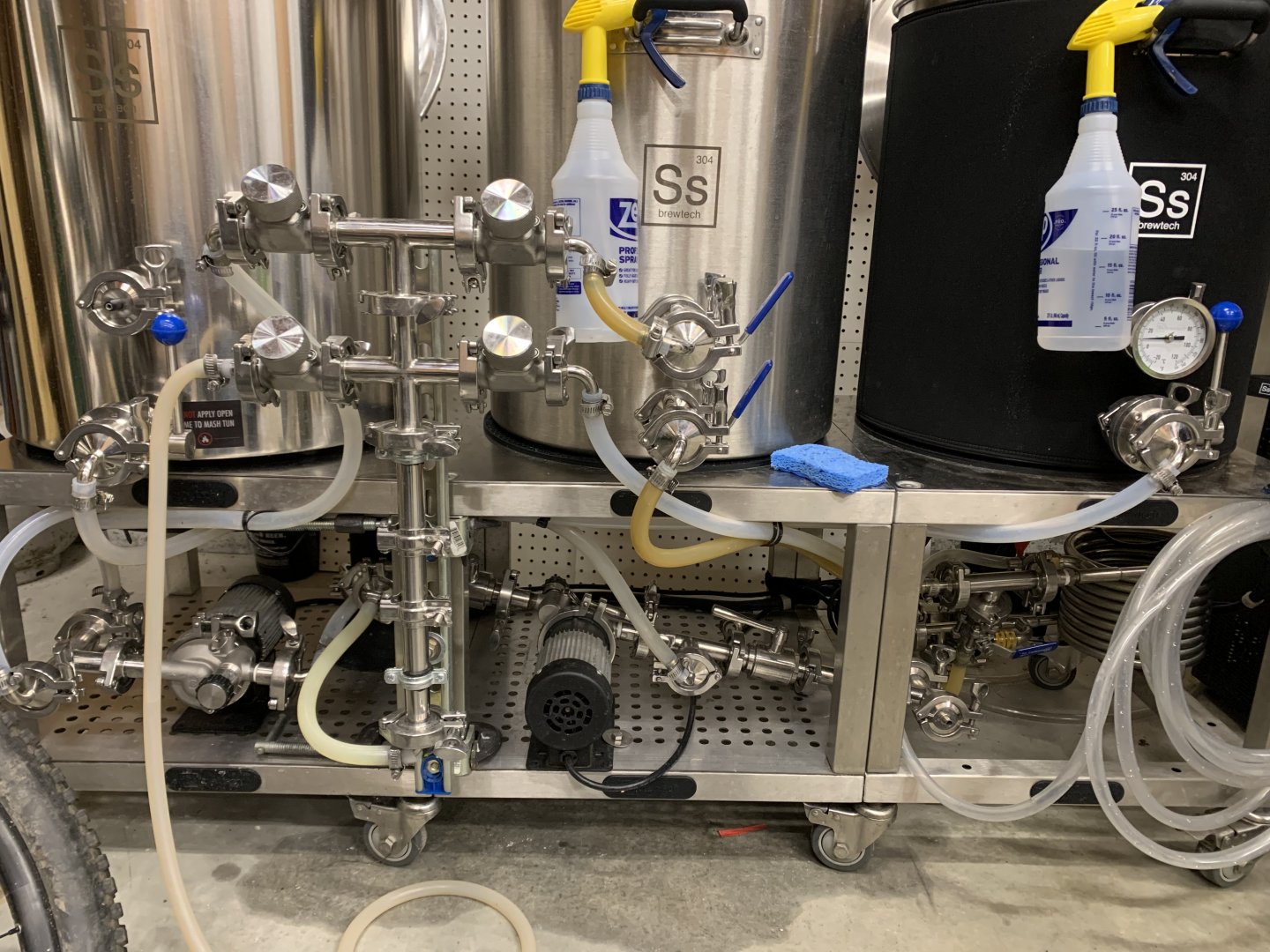

I tried to build the picture… it’s a photoshop special and won’t work.

I use 1 valve to circulate my mash through RIMS, 1 to whirlpool and counter flow, 1 to transfer from kettle to Uni, and the 4th is set up to bottom fill my kettle which I never use anymore. I’ve re built mine a few time now… i love my valve tree but it’s was a PITA to plan. 1 pump transfers from HLT to mash and also serves as a pass through when the RIMS is working via the second pump. The second pump does everything else.

it takes a few Ts and valves to make everything work.



[HighVoltageMan!]

I tried to build the picture… it’s a photoshop special and won’t work.

I use 1 valve to circulate my mash through RIMS, 1 to whirlpool and counter flow, 1 to transfer from kettle to Uni, and the 4th is set up to bottom fill my kettle which I never use anymore. I’ve re built mine a few time now… i love my valve tree but it’s was a PITA to plan. 1 pump transfers from HLT to mash and also serves as a pass through when the RIMS is working via the second pump. The second pump does everything else.

it takes a few Ts and valves to make everything work.

Wow! Looks like you spent some time on that! Nice.



[Dornbox]

Wow! Looks like you spent some time on that! Nice.

Thanks! There was certainly a lot of head scratching and scribbling on paper… and a lot of time spent shopping fittings!



[GFHomebrew]

I tried to build the picture… it’s a photoshop special and won’t work.

I use 1 valve to circulate my mash through RIMS, 1 to whirlpool and counter flow, 1 to transfer from kettle to Uni, and the 4th is set up to bottom fill my kettle which I never use anymore. I’ve re built mine a few time now… i love my valve tree but it’s was a PITA to plan. 1 pump transfers from HLT to mash and also serves as a pass through when the RIMS is working via the second pump. The second pump does everything else.

it takes a few Ts and valves to make everything work.

You never get them valves open in the wrong order.
Mate that's gotta come with instructions .



[Dornbox]

You never get them valves open in the wrong order.
Mate that's gotta come with instructions .

Ummm, I can not confirm or deny these allegations... Lol

Actually it did happen in the beginning, once... or twice. Now I just slow down and talk my way through it aloud and to myself.
